Ibis Ripley V5 Deore
$6,899.99
Details

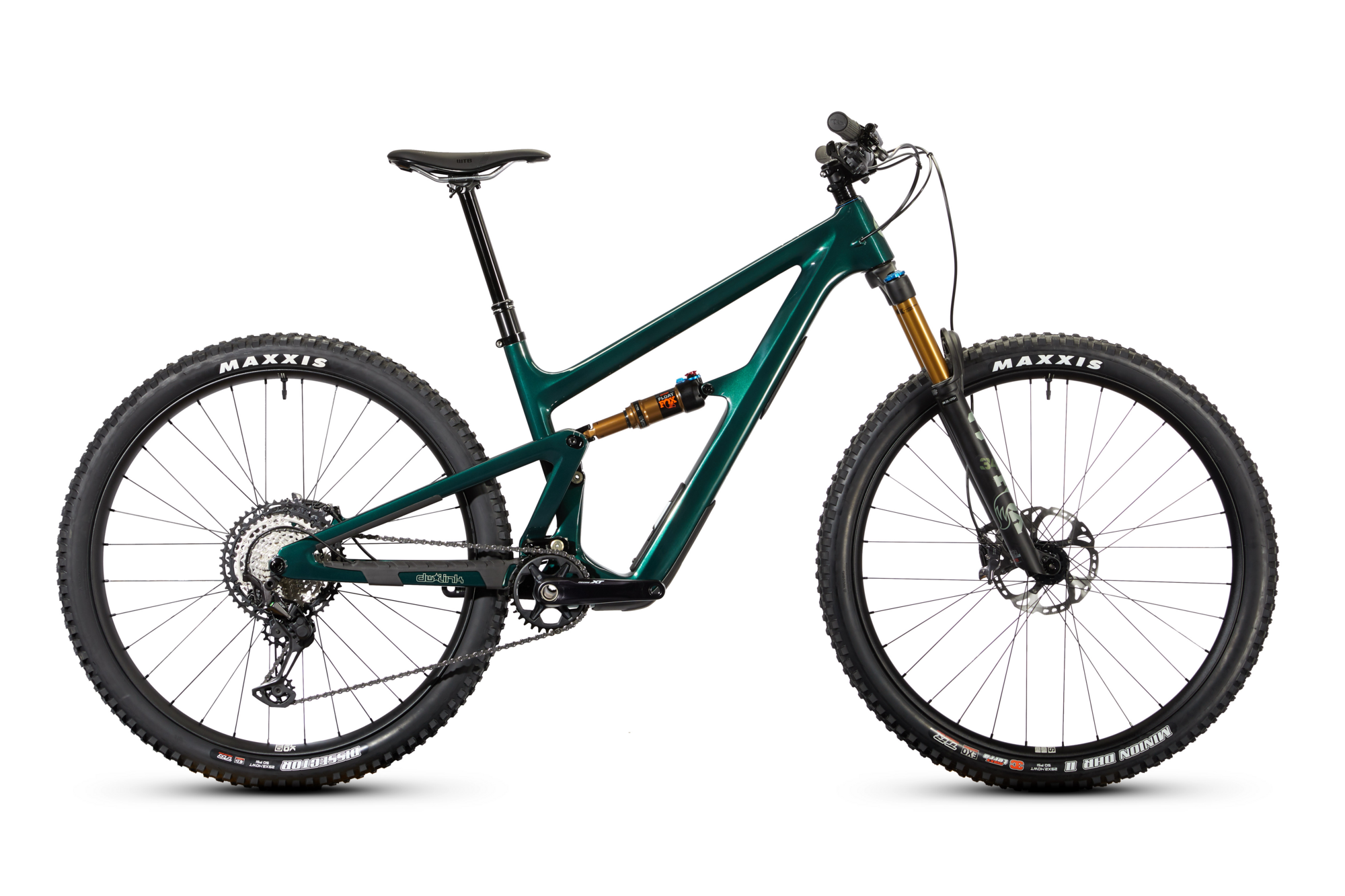

Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. It rivals the speed of an e-bike uphill while offering snappy, playful performance with 130mm of ultra-efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.
*Specs may vary from image displayed*
| Frame Size | Small | Medium | Extra Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube (mm) | 395 | 400 | 416 | 457 | 477 |
| Top Tube (mm) | 577 | 604 | 629 | 654 | 684 |
| Head Tube (mm) | 85 | 95 | 110 | 125 | 140 |
| Chainstay 29er (mm) | 436 | 436 | 437 | 440 | 442 |
| Chainstay MX (mm) | 433 | 433 | 434 | 436 | 438 |
| Seat Tube Angle | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
| Saddle Height For Seat Tube Angle (mm) | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| Wheelbase (mm) | 1187 | 1211 | 1241 | 1279 | 1321 |
| Stack (mm) | 613 | 619 | 629 | 640 | 650 |
| Reach (mm) | 440 | 460 | 483 | 511 | 545 |
| BB Drop 29er (mm) | 48 | 45 | 42 | 39 | 36 |
| BB Drop MX (mm) | 28 | 25 | 22 | 19 | 16 |
| BB Height (mm) | 326 | 329 | 332 | 335 | 338 |
| Standover (mm) | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop (mm) | 140 | 170 | 185 | 213 | 213 |
| Crank Length (mm) | 165 | 165 | 170 | 170 | 170 |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Fox Float 34, Performance Series, grip, 140mm, 29", 110mm x 15mm |
| Hubs | Ibis Logo Hubs |
| Rims | Ibis Send Alloy, 32 hole, 29" |
| Stem | Ibis 31.8mm S–M: 40mm, XM–XL: 50mm |
| Chain | Shimano Deore, M6100 |
| Frame | Ripley V5 Carbon |
| Tires |
Front Tire: Maxxis DHR2, 29" x 2.4", Exo, TR Rear Tire: Maxxis Rekon, 29" x 2.4", Exo, TR |
| Brakes | Shimano Deore, M6120, 4-Piston |
| Rotors | Shimano SM-RT66, F/R: 180mm |
| Saddle | WTB Silverado Fusion 142 |
| Wheels | Blackbird Send Alloy, 32 Hole, Ibis Logo Hubs, 29" |
| Headset | Cane Creek 40 ZS44/ZS56 |
| Crankset | Shimano Deore M6120 24mm spindle, 30t Alloy Ring S–M: 165mm, XM–XL: 170mm |
| Seatpost | KS Rage-i Dropper 34.9mm S: 125mm, M: 150mm, XM: 170mm, L–XL: 190mm |
| Shifters | Shimano Deore, M6100 |
| Handlebars | Ibis Hi Fi, 31.8mm, 800mm |
| Rear Shock | Fox Float, Factory Series, Float w/EVOL, 210mm x 52.5mm |
| Tape/Grips | Lizard Skin Charger |
| Bottom Bracket | Shimano SM BB52 |
| Rear Derailleur | Shimano Deore, M6100, Shadow Plus |
| Accessories & Extras | Cotopaxi Stow Bags |
| Cassette/Freewheel | Shimano Deore, M6100, 10-51T |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Green Flash / X-Large / 29-inch | RLC5GNSKEAL3525 | RIP28222602L |
