Details

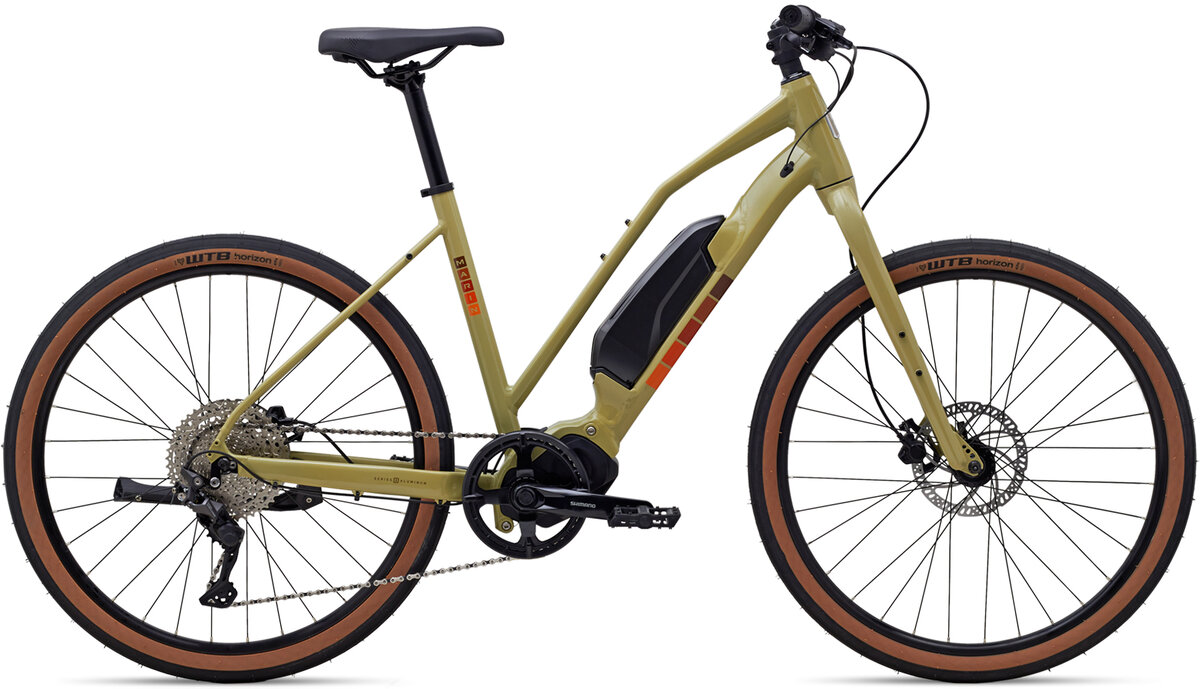

The Sausalito lives up to its namesake city as the perfect bike to tackle steep hills in the middle of your commutes or fun bike path explorations and get you and your stuff home in style. Shimano's STEPS electric drive systems are light, efficient, and powerful, giving you the boost you need to quickly and efficiently navigate a variety of road conditions and grades for many miles. 650b wheels and wider tires smooth out the streets and paths, and the whole platform is ready for customization with clever details for the attachment of all types of commuter accessories.
Small | Medium | Large | |
---|---|---|---|
A- STACK | 590 | 617.7 | 645.8 |
B- REACH | 380 | 405 | 425 |
C- HEADTUBE ANGLE | 69.5° | 69.5° | 69.5° |
D- HEADTUBE LENGTH | 120 | 150 | 180 |
E- SEATTUBE ANGLE | 74° | 74° | 74° |
F- SEATTUBE LENGTH | 430 | 480 | 520 |
G- TOPTUBE EFFECTIVE | 549 | 582 | 610.2 |
H- BB HEIGHT | 296.5 | 296.5 | 296.5 |
I- BB DROP | 45 | 45 | 45 |
J- CHAINSTAY | 455 | 455 | 455 |
K- WHEELBASE | 1083.4 | 1118.9 | 1149.4 |
L- STANDOVER HEIGHT | 460.19 | 487.35 | 510.57 |
M- FORK OFFSET | 44 | 44 | 44 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 720 | 740 | 740 |
STEM LENGTH | 45 | 45 | 45 |
CRANK LENGTH | 170 | 170 | 175 |
Size | Rider height range |
---|---|
Small | 5'2" to 5'6" |
Medium | 5'6" to 5'10" |
Large | 5'10" to 6'2" |
Specs
Frame | Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts |
---|---|
Fork | Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets |
Rims | Marin Aluminum Double Wall, Disc Specific |
Hubs | Forged Aluminum, 32H, Disc Specific |
Spokes | 14g Black Stainless Steel |
Tires | WTB Horizon, 650Bx47, Wire Bead |
Crankset | Shimano, Aluminum w/ 44T Steel Chairing |
Shifters | Shimano Deore 10-Speed |
Rear Derailleur | Shimano Deore 10-Speed |
Cassette/Freewheel | Shimano Deore 10-Speed 11-46T |
Chain | KMC X10E |
Brakes | Tektro HD-M275 Hydraulic, 180mm Rotor |
Brake Levers | Tektro Hydraulic |
Handlebars | Marin MiniRiser Alloy |
Tape/Grips | Marin Adventure |
Stem | Marin Alloy |
Headset | FSA No. 57E |
Seatpost | Marin Alloy, 30.9mm |
Saddle | Marin City Plush |
Pedals | Nylon Platform |
Accessories & Extras | Rear Mount Alloy Kickstand |
Motor | Shimano Steps E5000 Drive Unit, 250W, 40Nm, Class 1 |
Battery | Shimano BT8014, 418Wh |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Gloss Tan/Brown/Orange / Large | 843346115140 | 735019003 | SAU197893170 |
