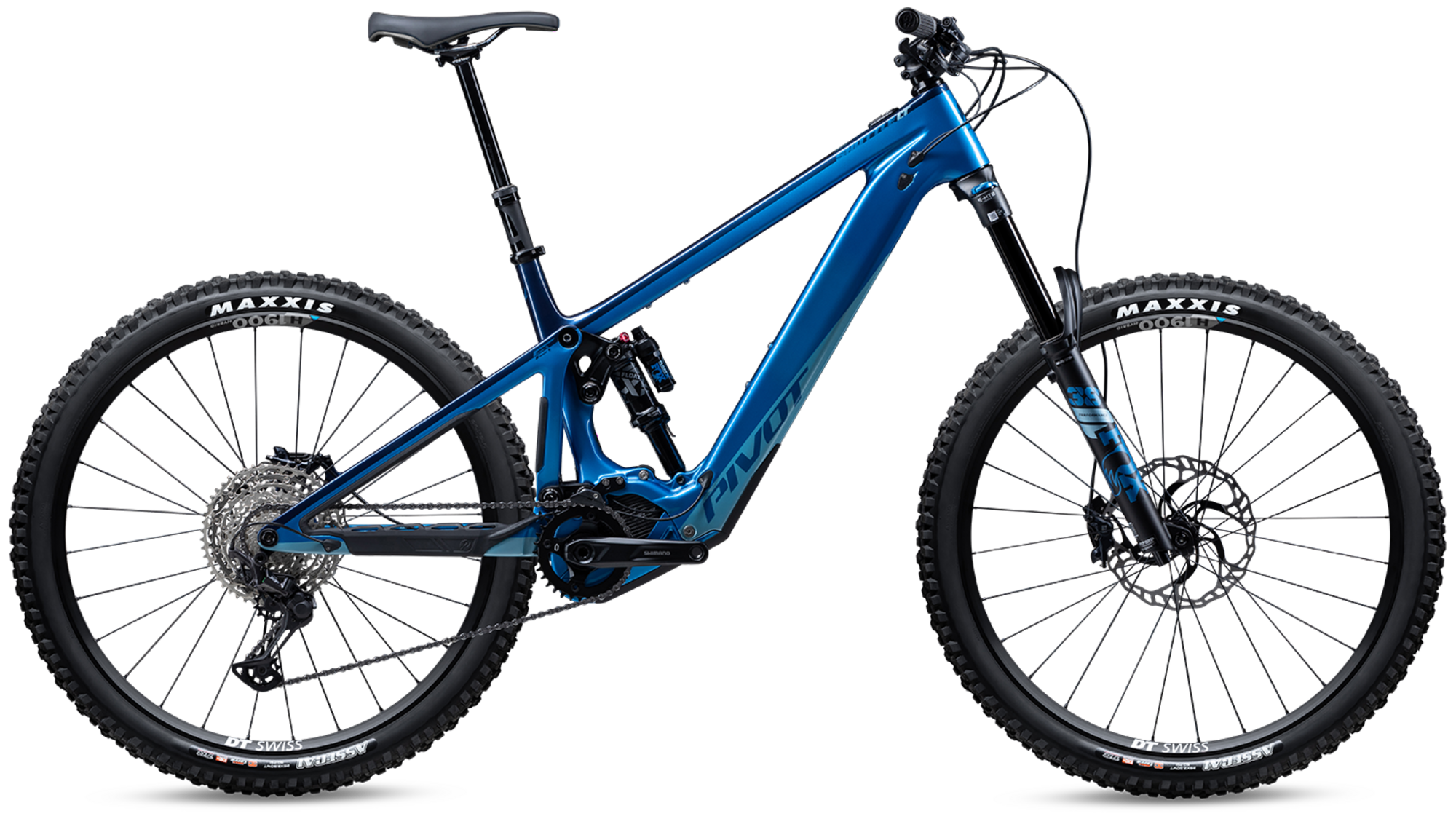

Pivot Cycles Shuttle LT Ride SLX/XT
Details
Too Much is Just Right
Race ready and ultra-refined, the new Shuttle LT is the hyper capable brainchild of the Pivot engineering team that delivered our EWS-proven Firebird. Pivot’s deadly accurate combination of dw-Link suspension and proprietary carbon molding technology come together in a bike that embodies ambition.
A Bird With Bigger Wings
The downtube of the Shuttle LT houses an energy dense 756 watt-hour battery. With an origin story that began with Pivot engineers doodling battery cell configurations on a cocktail napkin, this powerhouse was developed for Pivot with Shimano’s top battery partner.
The Shuttle LT is now powered by the latest Shimano EP801 motor. Bolstering a staggering 20% increase in peak power, Shimano’s EP801 surges from the EP8's 500 watts to an impressive 600 watts, paired with 85Nm torque, this new motor propels your ride to new heights. Shimano's commitment to innovation extends beyond power, as the EP801 motor whispers through trails with an even quieter operation, maintaining its featherlight 2.7kg profile, solidifying its stance as one of the most natural feeling, yet staggeringly powerful, full-power e-bike motors available.
More Power With More Finesse
Shimano’s smooth, powerful, and lightweight drive system gets you to the top with ease while XTR 4-piston brakes clamping on massive 223mm front and 203mm rear rotors give you all the dominant stopping power you could ever need.
PRODUCT DETAILS:
- Full-Carbon Frame Constructed with- Pivot's Proprietary Molding Technology
- Flip Chip Geometry Customization
- 160mm Travel- DW-Link Suspension
- Trunnion Mounted Fox Float X Shock
- 170mm Fox 38 Fork with custom eMTB tune
- Ergonomic Power Button
- Compatible with the new Di2 drivetrain (See FAQ for EP8 Compatibility)
- 85 Nm of Torque
- 600 Watts of Peak Power
- USB-C Charging Port
- High Grip Maxxis Assegai Tires
- Full-size water bottle fits inside the front triangle
- 223mm Front and 203mm Rear Rotors
- Clean Internal Routing with Pivot Cable Port System
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Bottom Bracket Setting | High / Low | High / Low | High / Low | High / Low |
| Seat Tube Length (C-T) (cm) | 37 / 37 | 40 / 40 | 43 / 43 | 47 / 47 |
| Top Tube Length (cm) | 60 / 60.5 | 62.3 / 63 | 64.5 / 65 | 67.2 / 66.9 |
| Head Tube Length (cm) | 11 / 11 | 12 / 12 | 13 / 13 | 14 / 14 |
| Head Tube Angle | 64.5° / 64° | 64.5° / 64° | 64.5° / 64 | 64.5° / 64° |
| Seat Tube Angle | 77° / 76.5° | 77° / 76.5° | 77° / 77° | 77° / 77.5° |
| Chainstay Length (cm) | 43.9 / 44.1 | 43.9 / 44.1 | 43.9 / 44.1 | 43.9 / 44.1 |
| Bottom Bracket Height (cm) | 35.7 / 35.2 | 35.7 / 35.2 | 35.7 / 35.2 | 35.7 / 35.2 |
| Bottom Bracket Drop (cm) | 1.7 / 2.2 | 1.7 / 2.2 | 1.7 / 2.2 | 1.7 / 2.2 |
| Standover (cm) | 69.4 / 68.6 | 69.8 / 69 | 70 / 69.2 | 70.1 / 69.3 |
| Wheelbase (cm) | 122.9 / 123.4 | 124.5 / 125.7 | 128.1 / 128.2 | 130.7 / 130.8 |
| Stack (cm) | 63.1 / 63.5 | 64 / 64.4 | 64.9 / 65.3 | 65.8 / 66.2 |
| Reach (cm) | 44.9 / 44.5 | 47.1 / 46.8 | 49.1 / 48.8 | 51.4 / 51 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| Small | 160 - 172 | 5'3" - 5'8" |
| Medium | 170 - 182 | 5'7" - 6'0" |
| Large | 177 - 188 | 5'10" - 6'2" |
| X-Large | 185 + | 6'1" + |
Specs
| Pedals | Sold Separately |
|---|---|
| Motor | Shimano Steps DU-EP801 |
| Fork | Fox Performance E-MTB 38 29", 44mm offset, GRIP - 170mm |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Chain | Shimano CN-M6100 12 Speed |
| Frame | Shuttle LT Shimano |
| Tires | Maxxis Assegai 29" x 2.5" TR, EXO+, 3C |
| Brakes | Shimano SLX M7120 4-piston |
| Rotors |
Shimano SM-RT64 CenterLock - 220mm Shimano SM-RT64 CenterLock- 203mm |
| Saddle | WTB High Tail Trail Race (SM), Phoenix WTB Pro Volt (Medium Width) (MD), Pivot Pro E-Bike (LG-XL) |
| Wheels | DT Swiss Hybrid H1900. 30mm - 29" |
| Headset | Pivot Precision Sealed Cartridge |
| Crankset | Shimano EM600 E-MTB 34t - 160mm |
| Seatpost | E13 Vario 150mm - 180mm (SM-LG), 180mm - 210mm (XL) |
| Shifters | Shimano SLX M7100 ISPEC EV 12-Speed |
| Handlebars | Phoenix Race Low Rise Aluminum |
| Rear Shock | Fox Performance Float X |
| Tape/Grips | Phoenix Factory Lock-On |
| Rear Derailleur | Shimano XT M8100 SGS 12-Speed |
| Cassette/Freewheel | Shimano Deore M6100 10-51t |
* Subject to change without notice.
Videos
NEW ORBEA TERRA | GRAVEL FROM THE GROUND UP
Gravel from the ground up. Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Terra IS gravel. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you. Discover everything about the new #OrbeaTerra at: https://bit.ly/Terra-vid_en Follow us: - Facebook: http://bit.ly/2n8mdvb - Instagram: https://bit.ly/3597J8n - Twitter: http://bit.ly/2nmpIjw - Linkedin: https://bit.ly/2CDErlw
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Northern Lights Green / X-Large | 196338094863 | 00SLTV129ASXA--NLGXLDRPINSA2 |
| Northern Lights Green / Medium | 196338094702 | 00SLTV129ASXA--NLGMDDRPINSA2 |
| Northern Lights Green / Large | 196338094627 | 00SLTV129ASXA--NLGLGDRPINSA2 |
| Bass Boat Blue Tri-Tone / X-Large | 196338094542 | 00SLTV129ASXA--BBTXLDRPINSA2 |
| Bass Boat Blue Tri-Tone / Large | 196338094306 | 00SLTV129ASXA--BBTLGDRPINSA2 |
| Bass Boat Blue Tri-Tone / Medium | 196338094382 | 00SLTV129ASXA--BBTMDDRPINSA2 |
| Northern Lights Green / Small | 196338094788 | 00SLTV129ASXA--NLGSMDRPINSA2 |
| Bass Boat Blue Tri-Tone / Small | 196338094467 | 00SLTV129ASXA--BBTSMDRPINSA2 |
